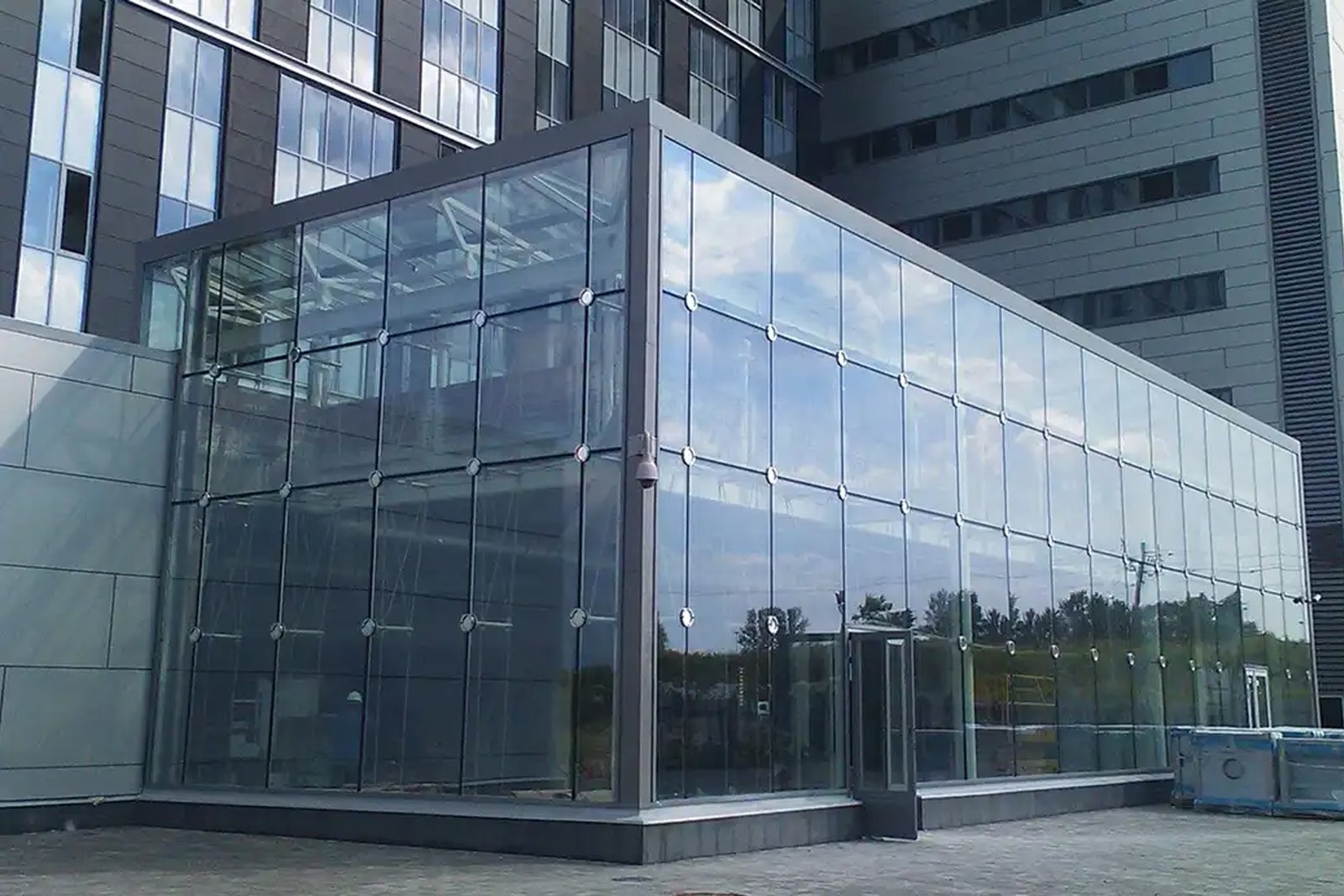

What is Spider Glazing?
Spider glazing is a specialized glass façade system where glass panels are supported using stainless steel spider fittings instead of conventional frames. These fittings transfer structural loads evenly, allowing large, uninterrupted glass spans with a clean, frameless appearance.
At The NestX, our spider glazing solutions are engineered to balance aesthetics and performance. We design and execute systems that deliver clarity, openness, and architectural sophistication, while meeting safety, stability, and durability standards for modern commercial buildings.
Why Choose Spider Glazing with The NestX
Why Our Spider Glazing Systems Stand Out
Because frameless glass deserves engineered confidence.
-
Frameless Visual Appeal
Minimal hardware visibility creates a floating glass effect that enhances modern architectural design and premium brand perception.
-
Superior Load Distribution
Stainless steel spider fittings distribute structural loads efficiently across the glass and support structure, reducing stress on individual panels.
-
Design Freedom
Supports large glass panels, inclined façades, and customized geometries for entrances, atriums, and feature walls.
-
High Structural Safety
Uses toughened or laminated safety glass, engineered fixing systems, and precise detailing to ensure safe performance under load.
-
Durability & Weather Resistance
Engineered to withstand wind loads, temperature variations, and outdoor exposure with appropriate fittings, sealants, and detailing.
-
Low Maintenance System
Reduced framing and clean detailing make cleaning and maintenance easier over the life of the façade.
Our Spider Glazing Execution Process
From Structural Planning to Seamless Execution
-
1. Site Study & Structural Review
We assess the supporting structure, glass spans, wind loads, and access conditions to define the right system configuration.
-
2. System Design & Glass Selection
Our team recommends spider fitting types, glass thickness, and glass specifications (toughened / laminated / Low-E) based on design intent and safety needs.
-
3. Shop Drawings & Engineering Details
We prepare detailed shop drawings covering fixing points, panel sizes, tolerances, load paths, and interface details with adjoining materials.
-
4. Fabrication & Hardware Procurement
Spider fittings, brackets, and accessories are sourced in high-grade stainless steel, and any required supports are fabricated to engineered specifications.
-
5. Precision Glass Installation
Glass panels are installed with precise alignment, controlled torque on fittings, and proper gasket and sealant application to ensure performance and safety.
-
6. Final Testing, Quality Check & Handover
We verify structural stability, joint sealing, alignment, and aesthetics before final handover to the client or project team.
Spider Glazing – Frequently Asked Questions
-
Is spider glazing strong enough for large glass areas?
Yes. Spider glazing systems are engineered using high-grade stainless steel fittings and safety glass, allowing them to safely support large glass spans when properly designed.
-
What type of glass is used in spider glazing?
Spider glazing typically uses toughened or laminated safety glass. The final specification depends on span, height, location, and safety requirements of the project.
-
Is spider glazing suitable for outdoor façades?
Yes. With the right fittings, sealants, and detailing, spider glazing performs reliably in outdoor conditions, including wind loads, rain, and temperature variations.
-
Where is spider glazing commonly used?
Spider glazing is ideal for building entrances, atriums, showrooms, corporate lobbies, airports, and other spaces where a highly transparent, frameless look is desired.
-
Can spider glazing be combined with other façade systems?
Yes. We often integrate spider glazing with structural glazing, ACP cladding, and other façade systems to deliver hybrid elevation solutions that align with architectural concepts.
